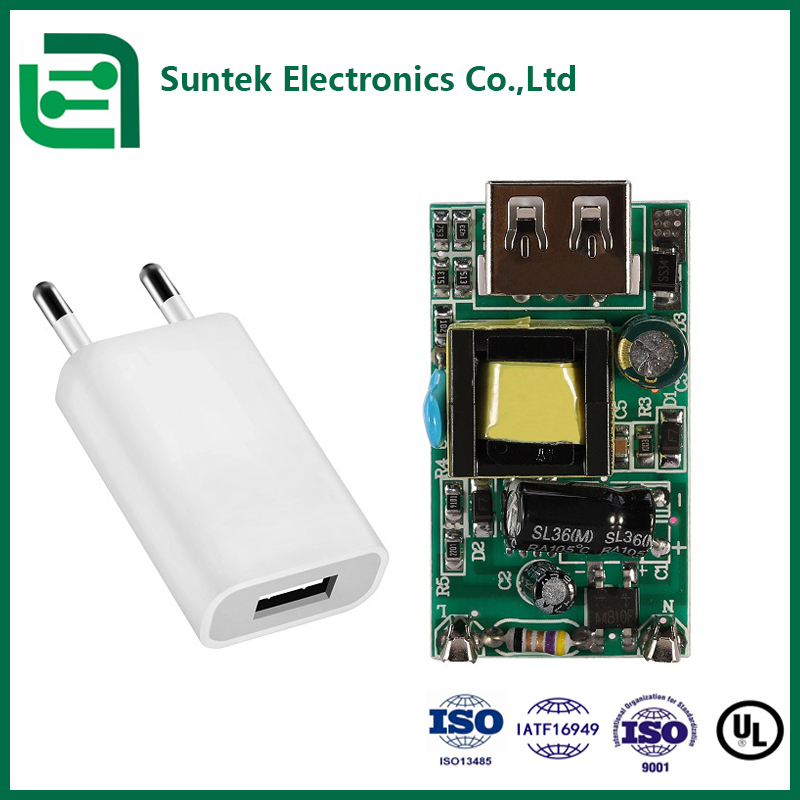

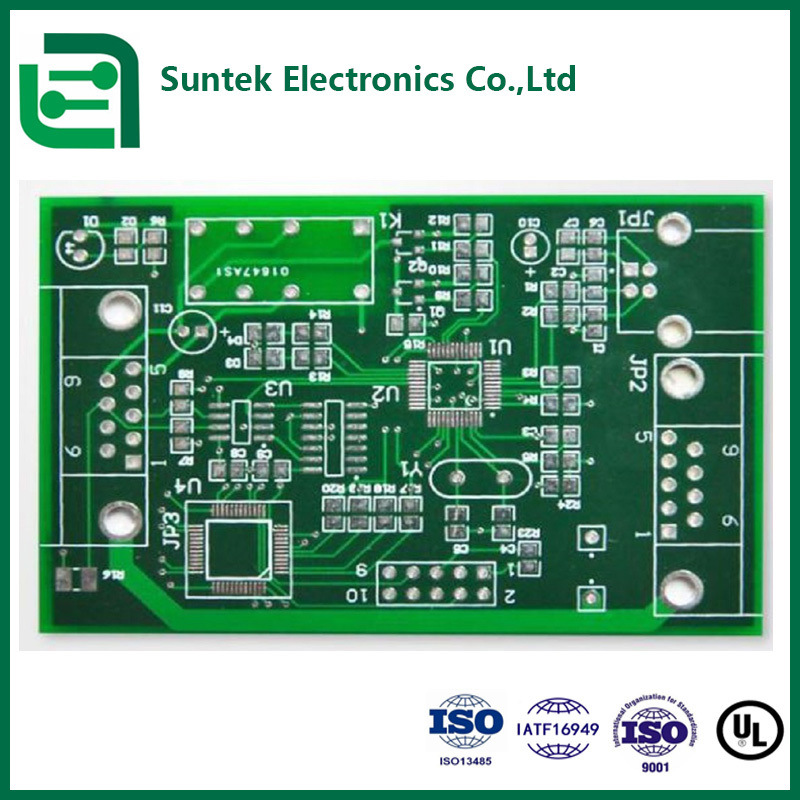

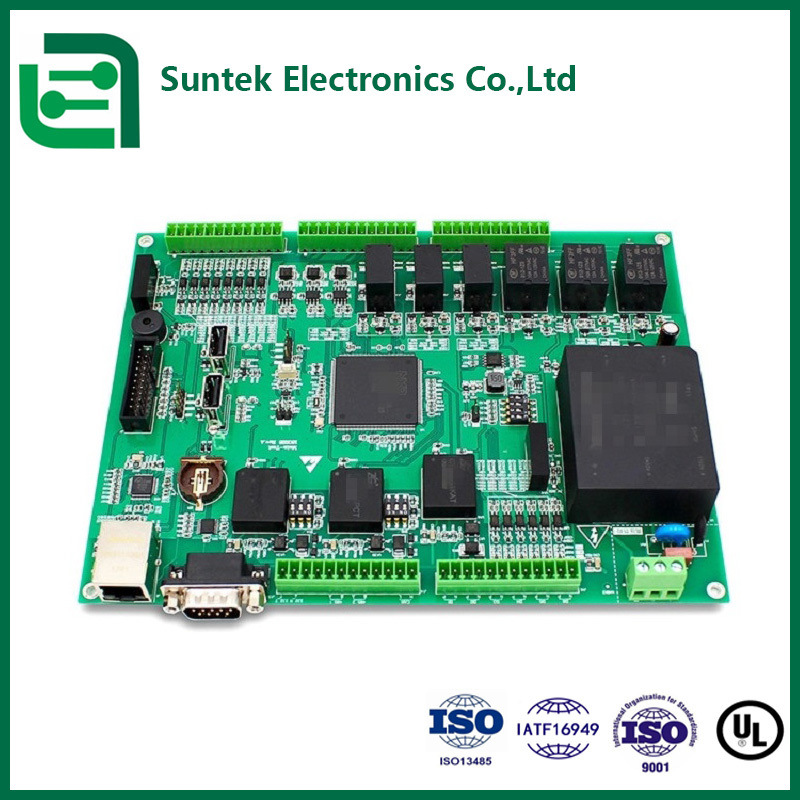

Quick Turn PCB Assembly with 1-32 Layers 1 Year Warranty and 0.1mm Hole Min. for Prototype Electronics
Suntek Group is a contract supplier in the EMS field, providing one-stop solutions for FCB/FPC assembly, cable assembly, and box-build assembly. Our facilities are located in Hunan Province, China and Kandal Province, Cambodia.
Certified with ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377, we deliver high-quality products at competitive prices worldwide.
Our services include:
- Product realization from Gerber files and BOM
- Reverse-engineering from physical samples
- Joint-design services for product development
PCB Assembly Capability
| Item |
Parameter |
| Board Type |
Rigid PCB, Flexible PCB, metal core PCB, Rigid-Flex PCB |
| Board Shape |
Rectangular, Circular and any irregular Shapes |
| Max Size |
400mm * 1200mm |
| Min Package |
0201 |
| Fine Pitch Parts |
0.25mm |
| BGA Package |
Acceptable |
| DIP Capacity |
DIP lines and AI assembly line |
| Parts Sourcing |
All by Suntek or partial consigned by customer |
| Parts Package |
Reels, Cut Tape, Tube & Tray, Loose Parts and Bulk |
| Testing |
Visual inspection, AOI, X-RAY, Functional Testing |
| Types of Solder |
Lead or Lead-free (RoHS Compliant) assembly |
| Assembly Option |
Surface mount (SMT), Through-hole (DIP), Mixed technology (SMT & Thru-hole) |
| Stencils |
Laser cut stainless steel stencils, step-down stencil |
| File Formats |
Bill of Materials, PCB (Gerber Files), Pick-N-Place File (XYRS) |
| Quality Grade |
IPC-A-610 Class 2/Class 3 |
Our Services
- PCB/FPC fabrication
- Components sourcing
- PCB/FPC assembly
- Custom cable/harness assembly
- Box build
Additional Services
- SMT, THT, BGA, 0201 Chips assembly
- AOI, X-Ray, ICT, FT, Burn-in
- Conformal coating or gluing
- High-mix, small to medium volume
EMS Advantages
- Strict product liability, taking IPC-A-610 standard
- All teams can speak fluent English
- PDCA management tool
- 100% E-test, 100% visual inspection, including IQC, IPQC, FQC, OQC
- 100% AOI inspection, including X-ray, 3D microscope and ICT
- High-voltage test, impedance control test
- ISO9001, ISO13485, IATF16949 and UL certified
- No minimum order quantity
- Focus on low to medium volume production
- Quick and on-time delivery
Why Choose Suntek?
As an experienced and reliable manufacturer, Suntek provides one-stop service, including PCB manufacturing and PCB assembly for global customers with diverse project requirements. Our strong teams help customers save time and money while delivering the highest quality products at favorable prices.
Instant Quote
Receive our instant quote within 24-48 hours with positive feedback for all your project specifications.
Strong Team
Our professional experts and engineers provide technical support from PCB design to turnkey PCB assembly, answering all questions promptly throughout the process.
Automatic Equipment
Advanced automatic equipment improves working efficiency and cost effectiveness, enabling us to deliver high-quality boards at competitive prices on time.
After Sales Service
We track all orders and provide instant updates throughout the process, with customer service representatives always available.
Our Supports
We ensure cost transparency with BOM cost breakdown sharing and source components globally. Our customer service process includes:
- Customer service procedure
- RMA procedure
- 8D reports
- PDCA (Plan-Do-Check-Action) in customer service
Response Commitment
We respond to complaints, issues and queries within 24 hours through:
- Weekly reports
- Customer supporting team to review communication times
- Customer satisfaction questionnaire
Aftersales Services
- 1-year guarantee period for all products
- FOC repair
- Quick compensation parts to replace defectives
FAQ
Q1: What files do you use in PCB fabrication?
A1: Gerber files and BOM.
Q2: How do you make sure the quality?
A2: Our Product is all 100% E-tested. PCB Assembly are with 100% AOI, ICT, FT and Visual checking, 100% X-ray for BGA.
Q3: Can we visit your company?
A3: Of course, Welcome to visit our company, Suntek located in Xingsha Industrial Park, Changsha, Hunan province, China.
Q4: What is the lead time?
A4: It takes 3-5 working days for sample, 7-10 working days for batch production based on files and quantity. It takes 15-20 working days for PCB assembly.
Q5: Will you keep our information and files secret?
A5: Sure, It is our basic principle to keep business secrets to protect our customers' designs. NDA can be signed at any time.
Q6: How to work with you?
A6:
- Email and send us the PCB layout file, BOM list
- We will provide reply confirmation within 12 hours and reply to the offer within 3-5 days
- Waiting for your company to confirm the price, order and payment terms
- We will proceed the order
We have advanced manufacturing equipment and technology, professional engineer team, purchasing team, quality team and management team to guarantee high quality products and on-time delivery. Our products are widely used in industrial control, auto, telecommunications, medical equipment, consumer electronics and more.
Factory Pictures
