Name: Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole
Brand: Suntek Electronics Co., Ltd.
SKU: F9632-123
Price: 50.00 USD
Availability: InStock

À la maison > produits > Assemblage de circuits imprimés clé en main >

Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole

Min. 0.05mm Board Thickness Turnkey PCB Assembly

Max 500mm*1200mm Board Size PCBA

Min. 0.025mm Laser Drilled Hole Printed Circuit Board Assembly

Lieu d'origine:

Chine / Cambodge

Nom de marque:

Suntek

Certification:

ISO9001, ISO13485, TS16949 and UL E476377

Numéro de modèle:

F9632-123

Nous contacter

Demandez un devis

Détails du produit

Plan PCB:

Carré, cercle, irrégulier avec Jigs

Finition suface:

Énigme

Processus:

Or/ruban/Assemblée d'immersion

Sucer:

L'ENIG 2u

Taille maximale:

600 mm * 1200 mm

soie:

Blanc

Contrôle de l'impédance:

50/90/100 ± 10% ohm

Forfait Transport:

Package d'aspirateur

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Prix

Based on GERBER and BOM

Détails d'emballage

Vide, anti-statique, ESD, cartons

Délai de livraison

1-2 semaines après que toutes les pièces collectées

Conditions de paiement

T / t, paypal

Capacité d'approvisionnement

100pcs / heure

Produits connexes

vidéo

Turnkey PCB Assembly with Vacuum Package White Silk and Square Circle Irregular Shapes

Obtenez le meilleur prix

vidéo

Turnkey PCB Assembly with White Silk and Vacuum Package for Industrial Control Applications

Obtenez le meilleur prix

vidéo

Turnkey PCB Assembly and PCBA with Min. 0.05mm Board Thickness, Max 500mm*1200mm Board Size, and Min. 0.025mm Laser Drilled Hole

Obtenez le meilleur prix

vidéo

Fabrication et assemblage PCBA et câbles clé en main RoHS UL pour équipements médicaux

Obtenez le meilleur prix

Nous contacter

0086-731-84874736

Contactez-nous maintenant

Description du produit

Turnkey PCBA Factory in China and Cambodia

Suntek Group is a professional contract manufacturer providing one-stop solutions for:

PCB/FPC assembly
Cable assembly
Mixed technology assembly
Box-build assembly

Manufacturing Facilities

Suntek Electronics Co., Ltd - Main facility located in Hunan province, China

BLSuntek Electronics Co., Ltd - New facility located in Kandal province, Cambodia

Certifications & Capabilities

Certified with ISO9001:2015, ISO13485:2016, IATF 16949:2016 and UL E476377. We deliver high-quality products at competitive prices worldwide.

Our advanced manufacturing capabilities include:

State-of-the-art equipment
Proficient technical expertise
Professional engineering, purchasing, and quality teams
Reliable on-time delivery

Applications: Industrial control, automotive, telecommunications, medical equipment, consumer electronics.

Core philosophy: "Quality wins Market, Ideas create the Future"

Technical Specifications

Item	Capability
Min. Finished Board Thickness	0.05mm
Max Board Size	500mm*1200mm
Min Laser Drilled Hole Size	0.025mm
Min Mechanical Drilled Hole Size	0.1mm
Min. Trace Width/Spacing	0.035mm/0.035mm
Min. Annular Ring of Single/Double-side Board	0.075mm
Min. Inner Layer Annular Ring of Multi-layer Board	0.1mm
Min. Outer Layer Annular Ring of Multi-layer Board	0.1mm
Min Coverlay Bridge	0.1mm
Min. Soldermask Opening	0.15mm
Min. Coverlay Opening	0.35mm*0.35mm
Min Single-ended Impedance Tolerance	+/-7%
Max Layer Count	12L
Material Type	PI, Kapton
Material Brand	Shengyi, Taiflex, Thinflex, ITEQ, Allstar, Panasonic, Dupont, Jiujiang
Stiffener Material Type	FR4, PI, PET, Steel, AI, Adhesive Tape, Nylon
Coverlay Thickness	12.5um/25um/50um
Surface Finish	ENIG, ENEPIG, OSP, Gold Plating, Gold Plating+ENIG, Gold Plating+OSP, Imm Silver, Imm Tin, Plating Tin

Specialized Technologies

IC Programming
BGA rework
Chip on Board/COB
Eutectic soldering
Auto-Gluing
Conformal Coating

Assembly Process

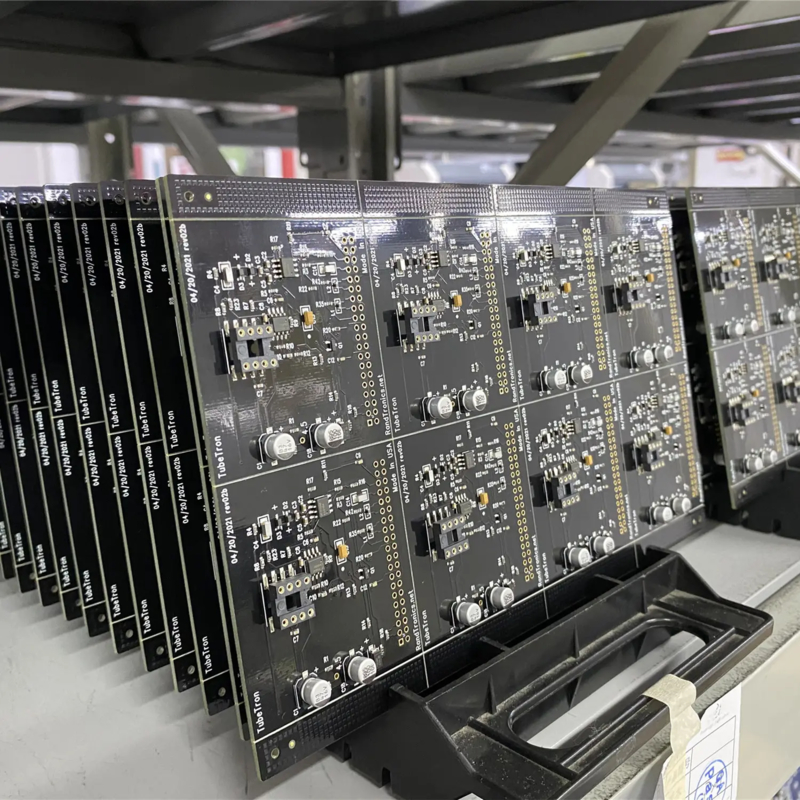

Manufacturing Showcase
